XOIL4219SC 42 Convertible Blower/Liner Combo
XOIL4219SC 42 Convertible Blower/Liner Combo
We might not be able to fulfill your order for the quantity requested
Dimensions
Width: 40-3/8
Height: 12
Depth: 19-1/4
Color
Features

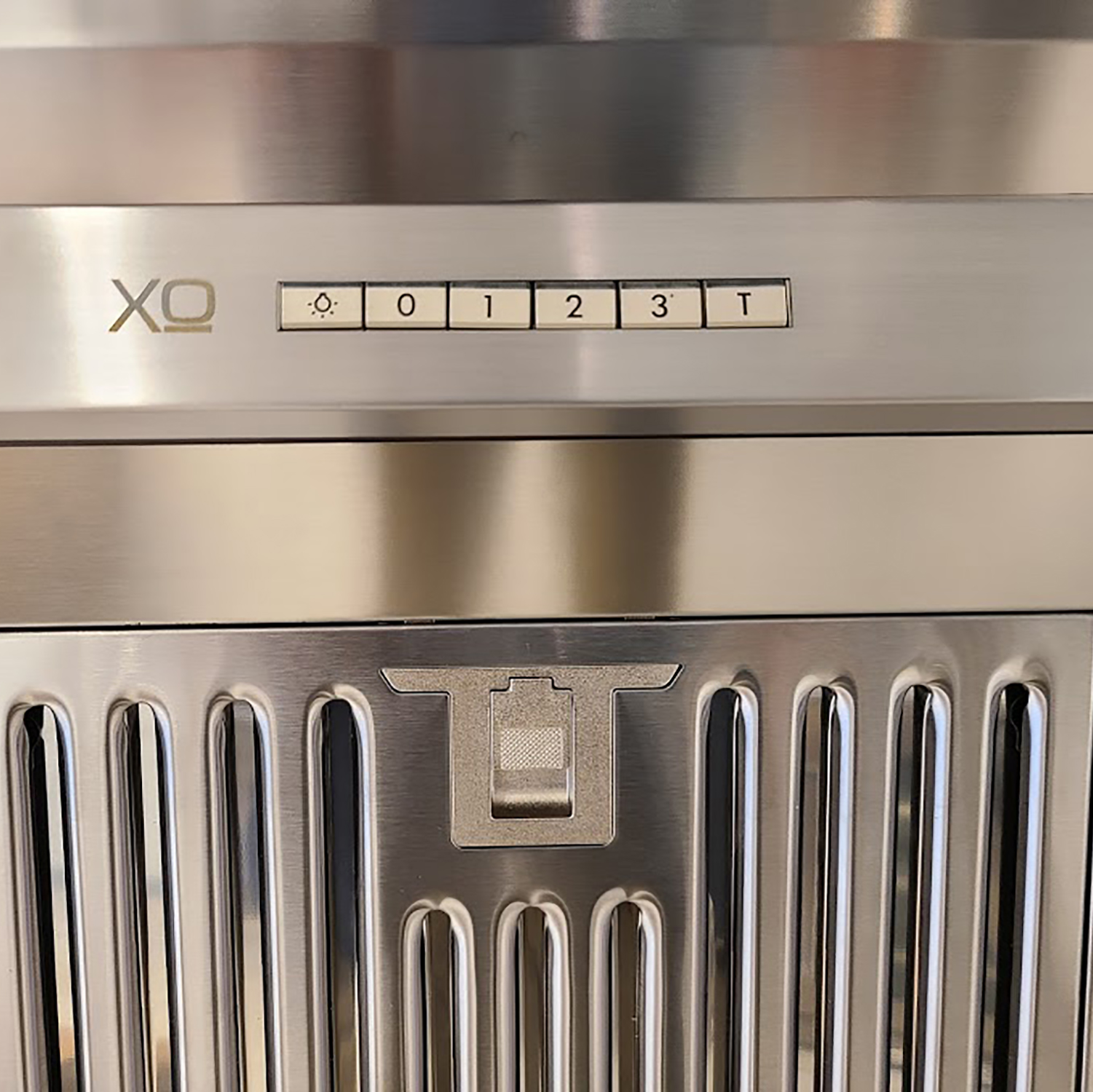

- Electronic 3 Speed Control + Power Boost
- CCC Code Compliance Control (395 or 600 CFM)*
- Combination Blower and SS Liner in One
- Optional ADA Compatible Remote

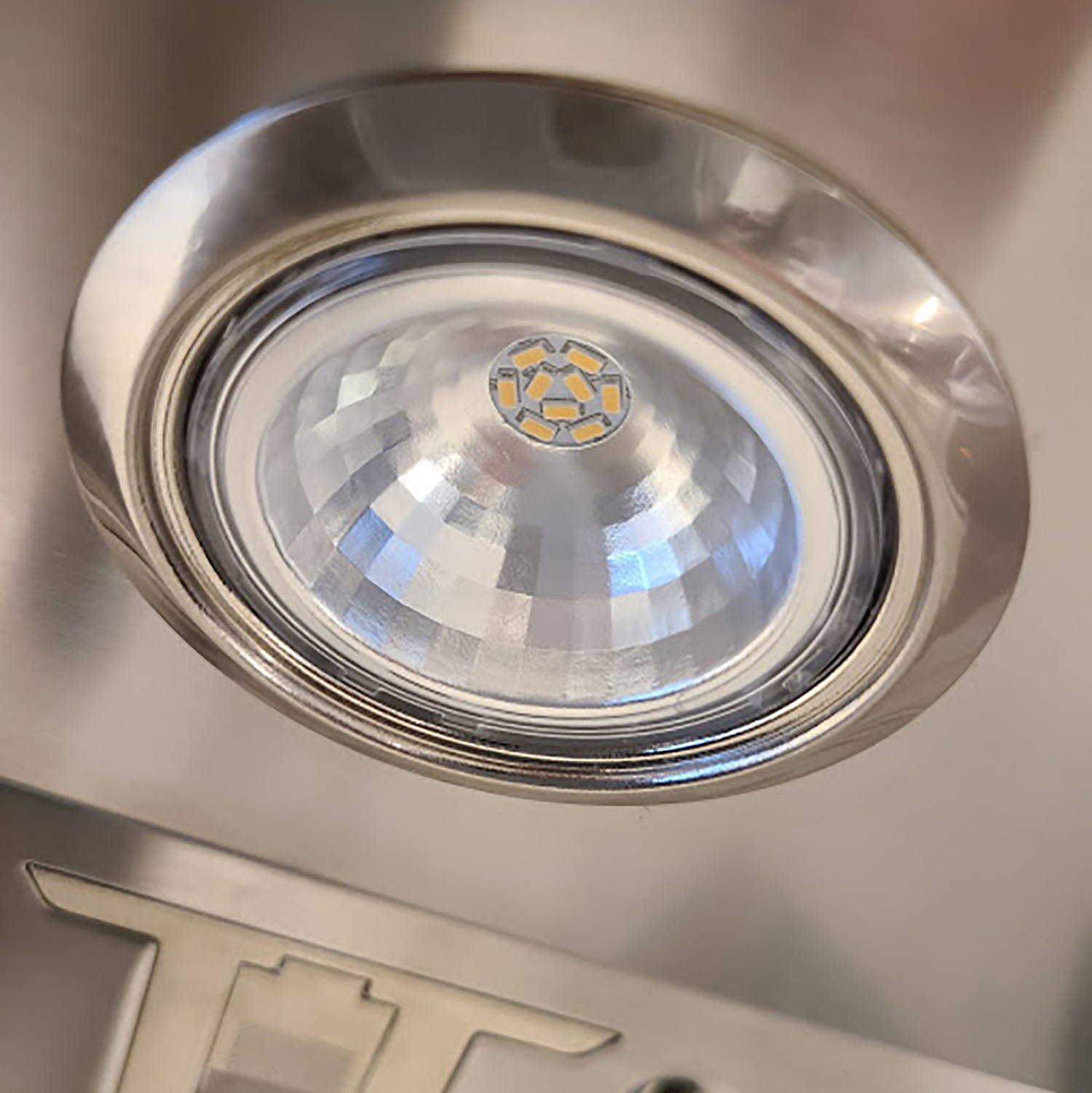

- High efficiency dimmable 3000K LED (x2)

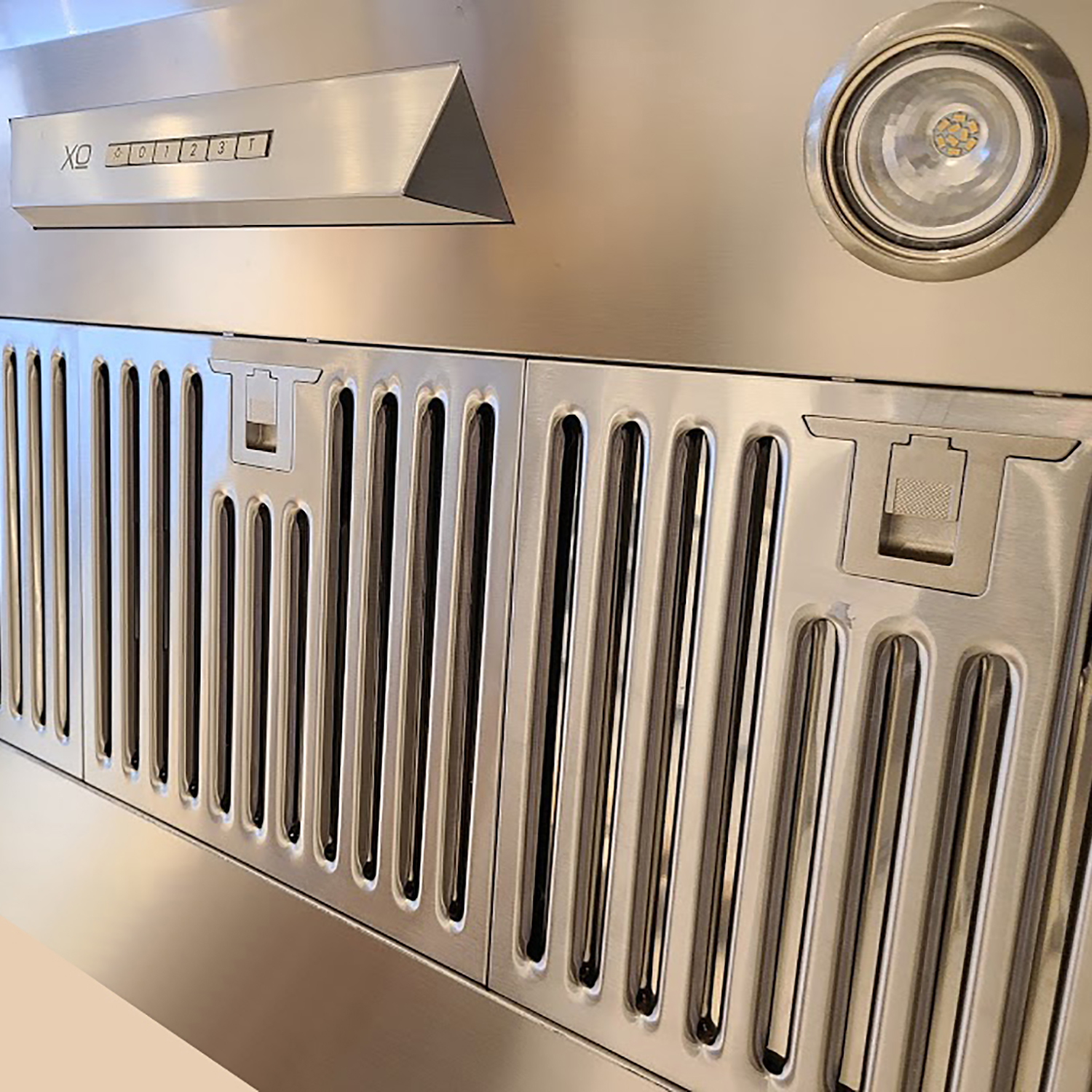

- Dishwasher safe SS PRO Baffle filters
- 6 Vertical, Rear or Recirculating (Kit Sold Separately)(Filtered, recirculated air must be returned to the living space)
- Made In Italy
- When CCC™ is enabled the number of fan speeds will be reduced to maximum 3 speeds
- Combination blower and liner saves time and money
- NOTE *When CCC™ is enabled the number of fan speeds will be reduced to maximum 3 speeds
Product Description

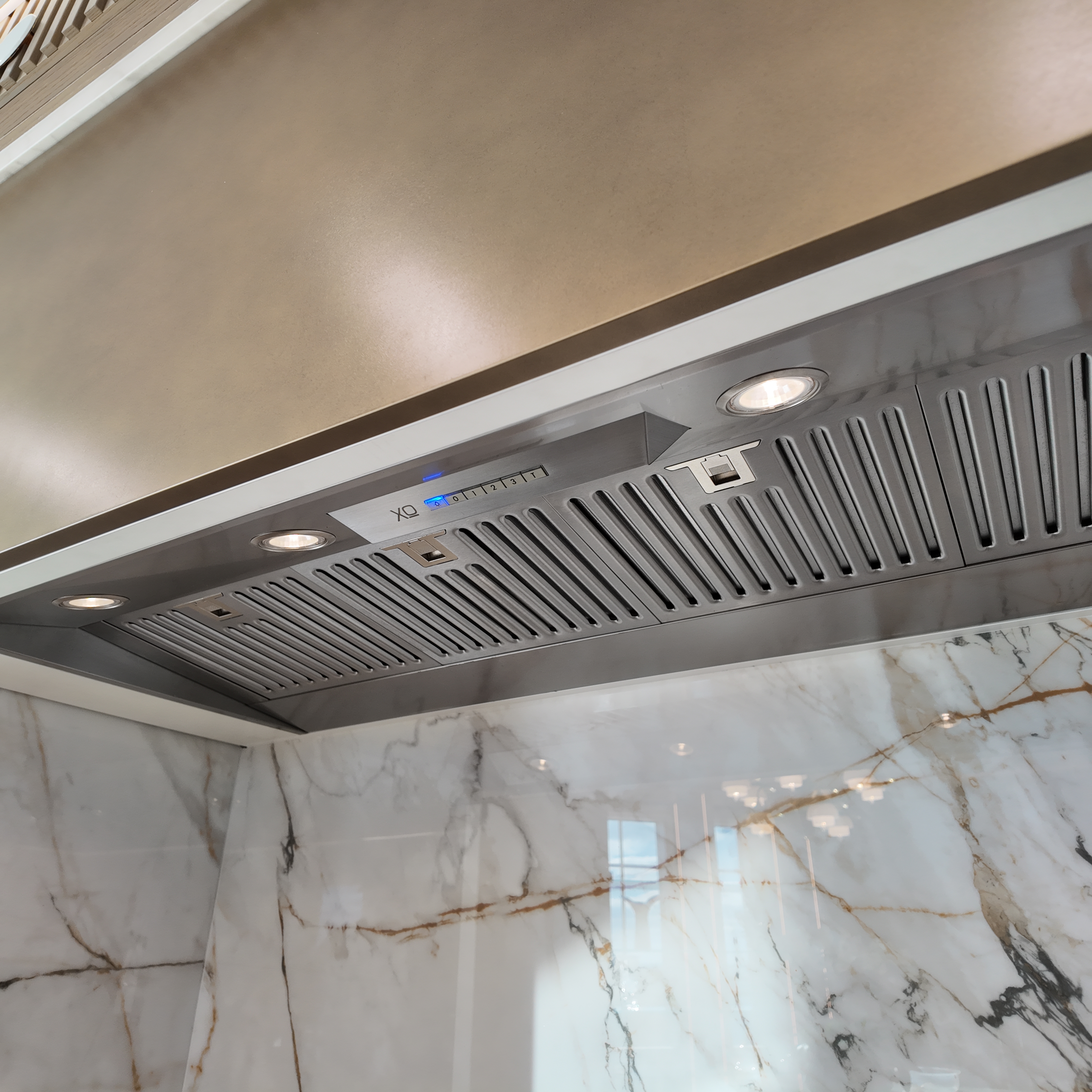

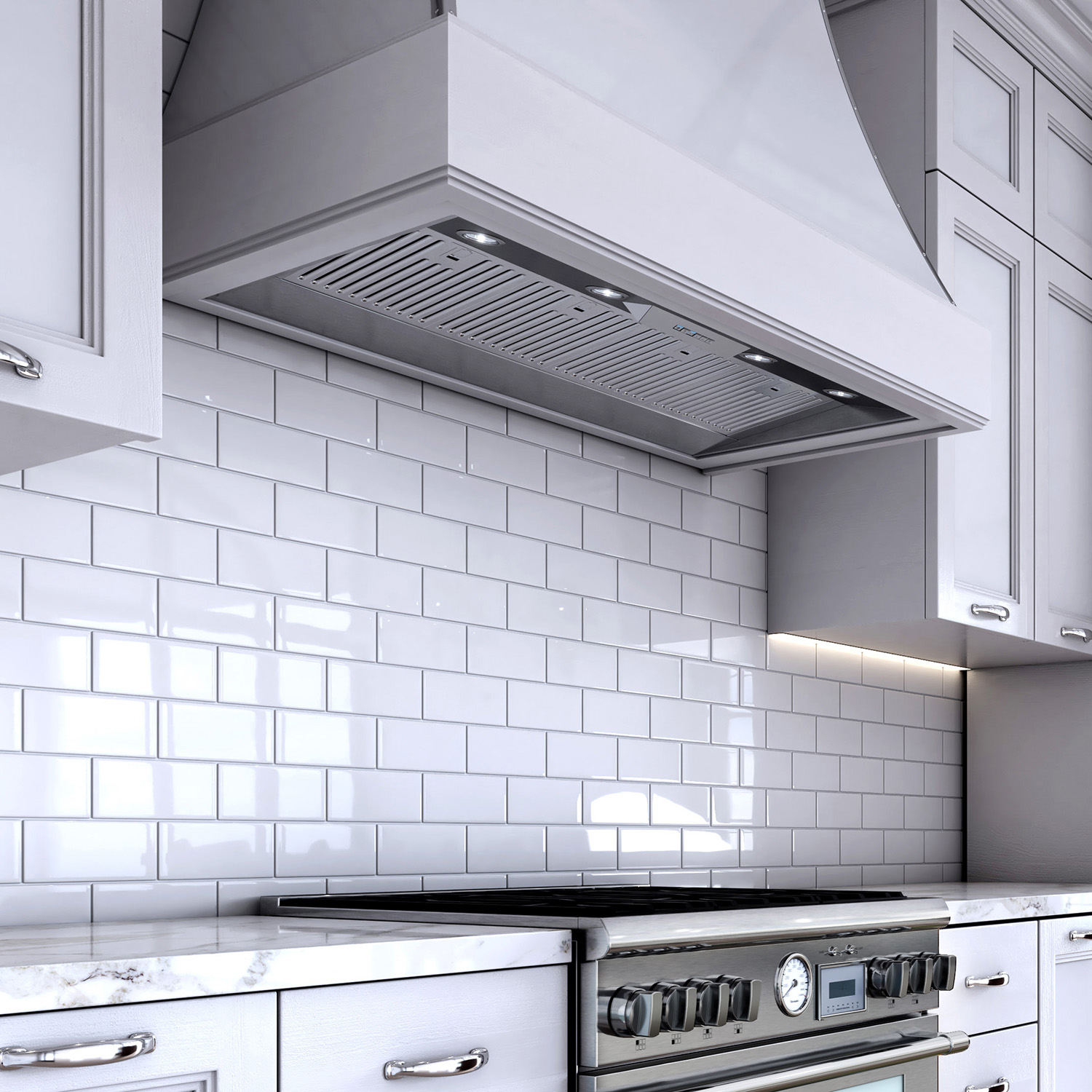

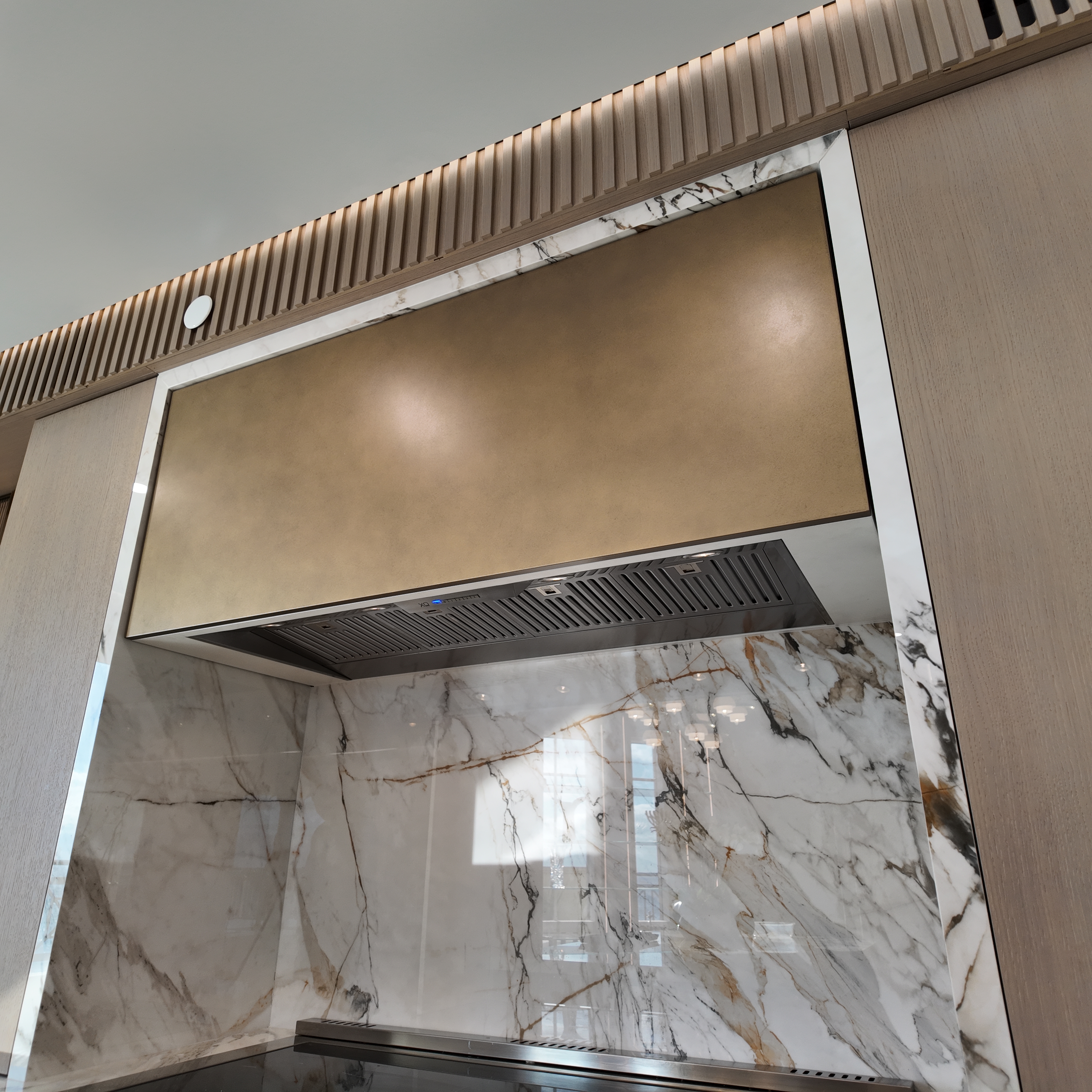

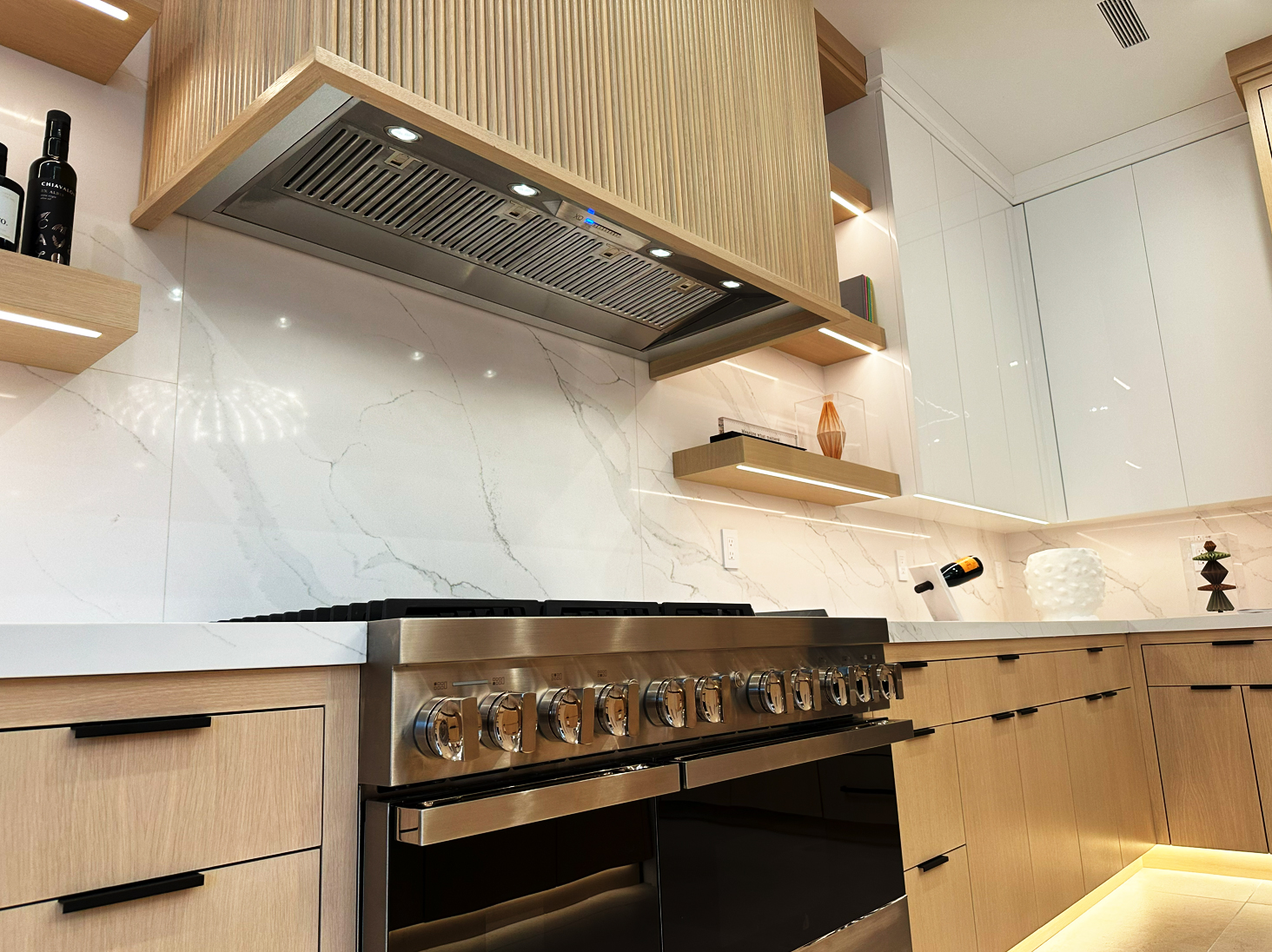

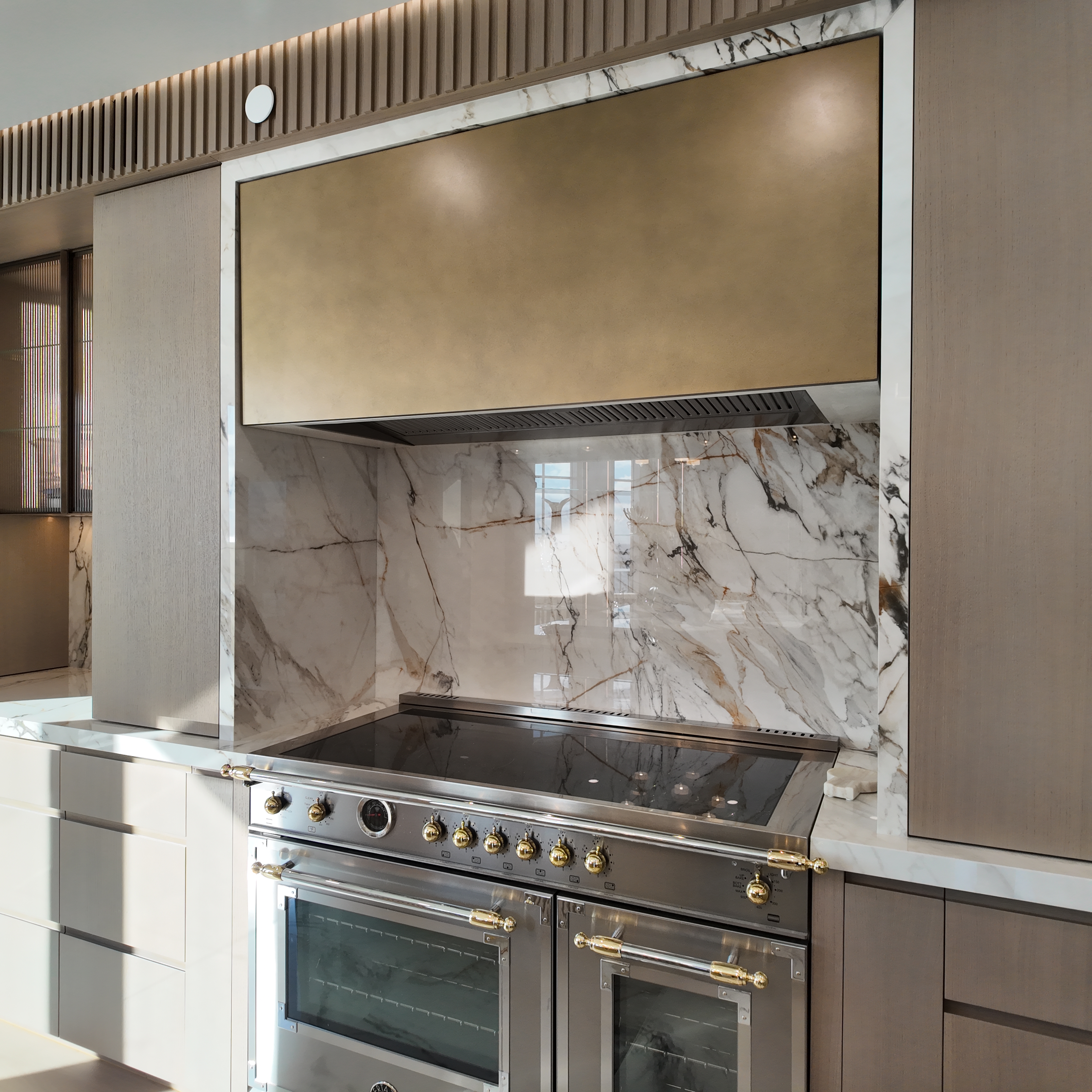

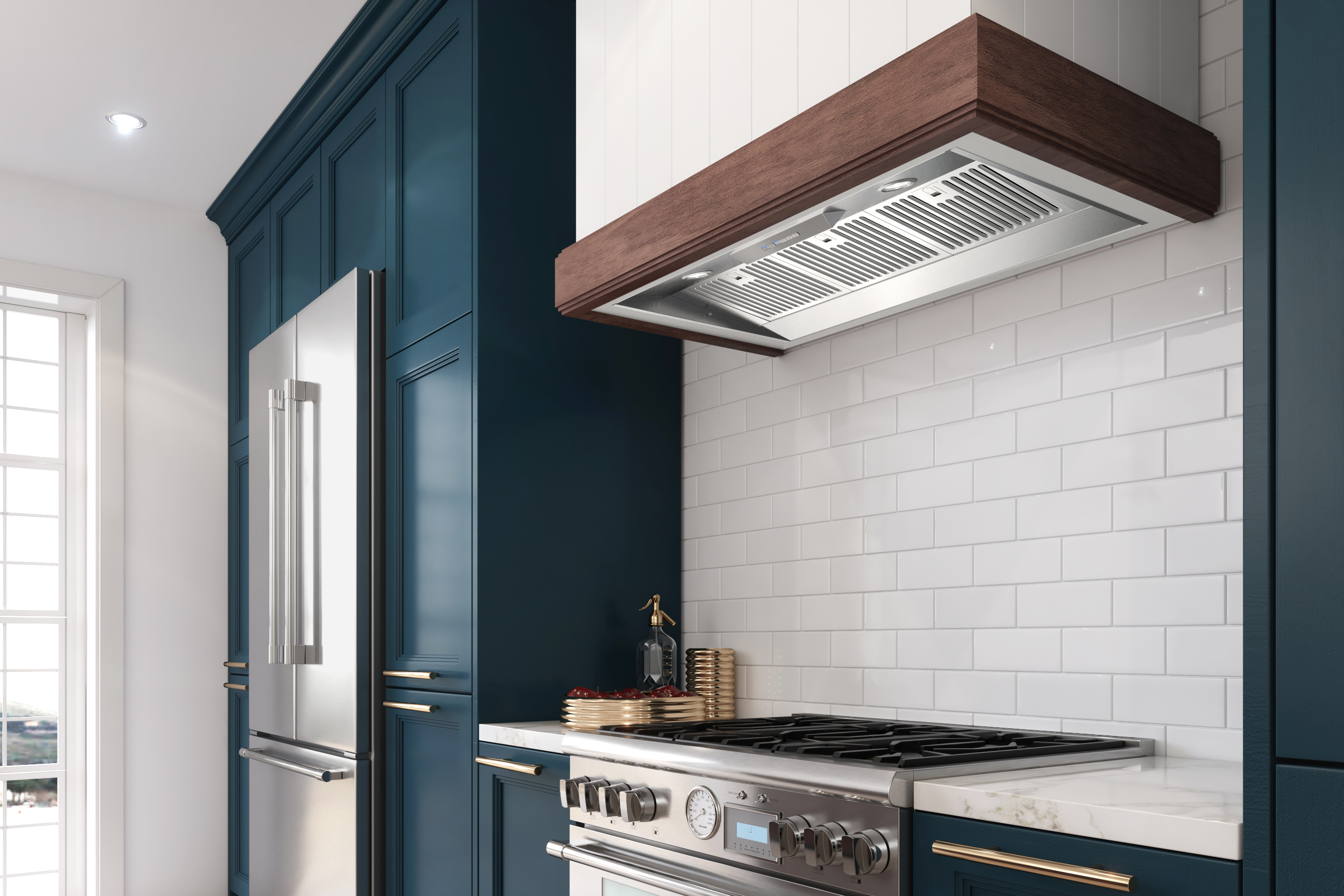

The XOIL series are designed as all-in-one blower/liner combination units for easy installation into custom hoods. Each XOIL model is designed and crafted in Italy to incorporate a multi-speed blower, controls, filtration, LED Lamps, and backflow damper. The XOIL is everything you need in one easy to install package.
Specification
| General | |
| Cut-Out Depth (inches) | 19-7/16 |
| Cut-Out Height (in.) | 12 1/4 |
| Cut-Out Width (in.) | 40-1/2 |
| Dimensions D x W x H (in.) | 19-1/4 x 40-3/8 x 12 |
| Product Weight (lbs.) | 41.8 |
| ADA Compatible | Yes |
| Prop 65 | Yes |
| Amperage | 3.6 Amps |
| Electrical | 120V - 60Hz - 3.6 Amps |
| Frequency (Hz) | 60 Hz |
| Voltage (volts) | 120 VAC |
| Wattage (watts) | 430 watts |
| Appliance Type | Range Hoods |
| Control Type | Backlit LED |
| Cooktop Lights | Twin LED Lights |
| Mounting Height Above Cooktop | 27 - 32 |
| Controls | Code Compliance Electronic Controls |
